GUIDE Intel UHD Graphics 620 (Whiskey Lake) on Laptop [Clover/OpenCore]

[EliteMacx86]

Fix Intel UHD Graphics 620 (Whiskey Lake) on Laptop

An EliteMacx86 Exclusive Guide - This guide covers fixing of Intel UHD Graphics 620 (Whiskey Lake) on Laptop. By following this guide, you'll be able to achieve full QE/CI on your Hackintosh.

Overview

---

macOS supports a wide range of Intel HD Graphics (also referred to as iGPU) but some of them might not work out of the box, if you have not followed the config.plist creation guide.

Before you start with this guide, please know something about the performance. Graphics enhance the performance and helps to work smoothly. In macOS, full acceleration requires that both Quartz Extreme and Core Image (QE/CI) should work together.

Quartz Extreme and Core Image (QE/CI) should work together to enable full acceleration on macOS’s GUI. It utilizes the complete Graphics capabilities. In case if you haven’t enabled QE/CI on your graphic card, you won’t be able to use your macOS smoothly and there would be lots of lags and artifacts, graphic related issues and poor refresh rate. Also the dock would not be transparent. Therefore it is very important to ensure that your graphic is working with full QE/CI.

Requirements

Graphics	Intel UHD Graphics 620 (Whiskey Lake)
Kexts	Original Graphics kexts in S/L/E
macOS Version	macOS Mojave 10.14.1 or later

BIOS Setting

---

The BIOS settings has been provided in a separate thread. For more information on BIOS settings, refer to the thread linked below.

BIOS/UEFI Settings for macOS (Intel/AMD)

BIOS/UEFI Settings for macOS (Intel/AMD) Most motherboards will work with only a few changes from Optimized Defaults. However, for some systems, you must change the settings for booting macOS and optimal performance. Before you start making changes to your BIOS, ensure you're running the latest...

www.elitemacx86.com

Config.plist

---

The config.plist file must be as per the guide.

For Clover:

1. Mount the EFI partition of your system drive.
2. Navigate to EFI\Clover and open your config.plist with Clover Configurator.

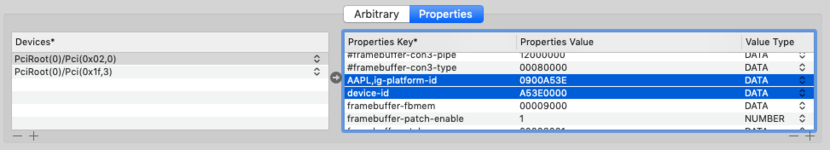

3. Navigate to Acpi tab and add the following patch in DSDT section of your config.plist.

Properties Key: AAPL, ig-platform-id
Properties Value: 0900A53E
Value Type: DATA

Properties Key: device-id
Properties Value: A53E0000
Value Type: DATA

​

​

4. Save your config.plist file.

For OpenCore:

GUIDE - How to Create OpenCore config.plist file for booting macOS on Intel Laptops

How to Create OpenCore config.plist file for booting macOS on Intel Laptops An EliteMacx86 Exclusive Guide - This guide covers creation of config.plist for booting macOS on Intel Laptops for OpenCore as a bootloader. Overview The config.plist is a system configuration file for the Hackintosh...

www.elitemacx86.com

Notes :

• The config.plist must be according to the following guide.
• You must use "config_HD615_620_630_640_650.plist"

GUIDE - How to Boot macOS Installer on Laptops using Clover (UEFI/Legacy)

Booting macOS installer on laptops can be a challenge for the new users. This guide covers a complete step to boot the macOS installer on your Laptop using Clover bootloader. Those who are not using Clover, can update their configuration for clover and continue to use it. Clover is one of the...

www.elitemacx86.com

Additional Note:

• On some Laptops, after fixing the Graphics, you may result in a black screen. For more information, check the backlight guide here:

GUIDE - How to Enable Backlight Control on Laptops [Clover/OpenCore]

How to Enable Backlight Control on Laptops [Clover/OpenCore] This guide describes the implementation of backlight control on Laptops and AIO using Clover and OpenCore bootloader. By following this guide, you'll be able to enable backlight control on your Laptop and AIO. In addition, this will...

www.elitemacx86.com

Restart your System

---

After performing all the above steps, restart your system for the applied changes to take effect.
Now you should be able to get your Intel UHD Graphics 1536 MB will full QE/CI. And your Dock would be also transparent.


Problem Reporting

---

Details:

1. macOS version
2. Copy of IOReg
3. Kextcache output

Screen shots:

• DPCIManager/Status
• About This Mac
• System Information/Graphics/Displays

Files:

• For Clover, compress EFI/Clover, exclude the themes folder.
• For OpenCore, compress EFI/OC.

Notes:

• Do not include complete EFI folder.
• Put all files in a folder with your name, compress files as Zip and attach files using site attachments only.
• Do not use any external links.

Credits :
RehabMan



[EliteMacx86]

Hi, I have such a mini-PC and I just can not get the graphics to work with acceleration
tried many different platform-id and device-id, as well as various other combinations up to exotic ones

https://aliexpress.ru/item/32914454367.html?spm=a2g0o.productlist.0.0.39a27271DKHXV9&algo_pvid=df86fbcb-ba91-4d3d-a82b-4a1639b1f1be&algo_expid=df86fbcb-ba91-4d3d-a82b-4a1639b1f1be-0&btsid=cfd2969e-397a-4c7c-b12b-562684519826&ws_ab_test=searchweb0_0,searchweb201602_1,searchweb201603_53

Hi, I have such a mini-PC and I just can not get the graphics to work with acceleration
tried many different platform-id and device-id, as well as various other combinations up to exotic ones.


Hi, I have such a mini-PC and I just can not get the graphics to work with acceleration
tried many different platform-id and device-id, as well as various other combinations up to exotic ones

https://aliexpress.ru/item/32914454367.html?spm=a2g0o.productlist.0.0.39a27271DKHXV9&algo_pvid=df86fbcb-ba91-4d3d-a82b-4a1639b1f1be&algo_expid=df86fbcb-ba91-4d3d-a82b-4a1639b1f1be-0&btsid=cfd2969e-397a-4c7c-b12b-562684519826&ws_ab_test=searchweb0_0,searchweb201602_1,searchweb201603_53

What's the point to quote and mention the same things again and again?

No PR files attached.
Read here:

[FAQ] READ FIRST! Questions related to Laptop

Before posting your queries, several common questions have been already answered and some exists in the sticky threads in the Laptop support forum. Read this post before you start your journey with your laptop before posting your doubts and queries... If you ask a question which has been...

www.elitemacx86.com



[EliteMacx86]

I did not understand how to get these pr files

Read here:

[FAQ] READ FIRST! Questions related to Laptop

Before posting your queries, several common questions have been already answered and some exists in the sticky threads in the Laptop support forum. Read this post before you start your journey with your laptop before posting your doubts and queries... If you ask a question which has been...

www.elitemacx86.com



[EliteMacx86]

I just answered in this thread so as not to create a new one, as you managed to notice, this is not a laptop or a stationary computer

That's not a problem. It's kinda NUC



[EliteMacx86]

please delete account.................

Read here:

Rules

www.elitemacx86.com



[am303737]

Thanks for your amazing contribution

Can You make a [Fix] for Intel UHD 620 (Kaby Lake) ... because the old fix is too old and there are a better alternatives like this FIX here



[EliteMacx86]

Thanks for your amazing contribution

You're welcome

Can You make a [Fix] for Intel UHD 620 (Kaby Lake) ... because the old fix is too old and there are a better alternatives like this FIX here

Yes, i'll update the guide. This is for specifically Whiskey Lake.



[aluskamos]

First off, thanks for the guide! I can't seem to get acceleration working on my Whiskey Lake UHD 620 (i7-8565u), GPU Device ID 0x3EA0 according to ARK. The system will boot with no acceleration with only an ig-platform-id set, but setting a device-id will prevent booting. Verbose boot shows a few lines starting with [IGPU] that seem to indicate that a graphics driver is successfully loading, but gIOScreenLockState 3 follows and boot stops.

I have tried both Coffee Lake and Kaby Lake properties that have been known to work on other UHD 620 systems. I've attached PR files as requested - happy to provide any additional information!



[EliteMacx86]

First off, thanks for the guide! I can't seem to get acceleration working on my Whiskey Lake UHD 620 (i7-8565u), GPU Device ID 0x3EA0 according to ARK. The system will boot with no acceleration with only an ig-platform-id set, but setting a device-id will prevent booting. Verbose boot shows a few lines starting with [IGPU] that seem to indicate that a graphics driver is successfully loading, but gIOScreenLockState 3 follows and boot stops.

I have tried both Coffee Lake and Kaby Lake properties that have been known to work on other UHD 620 systems. I've attached PR files as requested - happy to provide any additional information!

Often, Dell XPS comes with UHD/4K panel. What's your screen? 1080p or UHD/4K?



[aluskamos]

Often, Dell XPS comes with UHD/4K panel. What's your screen? 1080p or UHD/4K?

Sorry, forgot to mention yes it's a 4K panel. Dedicated video memory in Windows shows 128MB, so I don't think DVMT allocation is a problem? Did try using the patches though, no effect that I could tell
