GUIDE How to Enable Intel Skylake Graphics (Intel HD Graphics 515, 520, 530, 540, 550 and 580) on macOS Ventura and Later

[frgx]

Hello. I'm happy owner of laptop Dell Latitude E5570 with i5-6440HQ (Skylake, HD530). Finally I've upgraded from Monterey to Ventura, spoofed SKL->KBL graphics device-id.
That was in config.plist on Monterey


Here is new config.plist on Ventura

Opencore boots without any issues, VDADecoderChecker says "Hardware acceleration is fully supported" but I noticed terrible color banding in all of gradients. Seems like I have only 8 bit display mode. I tried a different device-id/platform-id for Laptop Skylake, but haven't had success(((

Also for tests I changed device-id to old that was on Monterey to not use spoofing and colors became perfect!!! But there was no HW acceleration((( I need to have perfect gradients and HW acceleration work together. How to fix this problem? Thanks for help



[EliteMacx86]

Hello. I'm happy owner of laptop Dell Latitude E5570 with i5-6440HQ (Skylake, HD530). Finally I've upgraded from Monterey to Ventura, spoofed SKL->KBL graphics device-id.

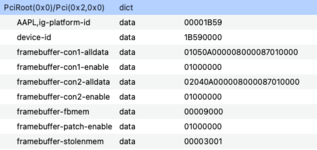

That was in config.plist on Monterey
View attachment 5360

Here is new config.plist on Ventura
View attachment 5361
Opencore boots without any issues, VDADecoderChecker says "Hardware acceleration is fully supported" but I noticed terrible color banding in all of gradients. Seems like I have only 8 bit display mode. I tried a different device-id/platform-id for Laptop Skylake, but haven't had success(((
View attachment 5363
Also for tests I changed device-id to old that was on Monterey to not use spoofing and colors became perfect!!! But there was no HW acceleration((( I need to have perfect gradients and HW acceleration work together. How to fix this problem? Thanks for help

You can use OCLP and the SKL data to fix the issue.



[frgx]

You can use OCLP and the SKL data to fix the issue.

Cool How to apply OCLP and where I can get SKL data?



[EliteMacx86]

Cool How to apply OCLP and where I can get SKL data?

Simply patch the system using OCLP. A guide is already available on this forum. SKL Data is SKL device-id and ig-platform-id



[hoaug]

Hello, EliteMacx86.
Today i was try install Ventura in my Mini Desktop.
Specs:
CPU: i5-6600
GPU: HD530
MAIN: HP
RAM: 8GB
SSD: Kioxia 256GB
I install successful but my screen glitch black, i follow your guide 100% but i cant fix it, is there any way to fix it please? thank you so much. here is the video about issue. pls check. thanks. Video here



[EliteMacx86]

Hello, EliteMacx86.
Today i was try install Ventura in my Mini Desktop.
Specs:
CPU: i5-6600
GPU: HD530
MAIN: HP
RAM: 8GB
SSD: Kioxia 256GB
I install successful but my screen glitch black, i follow your guide 100% but i cant fix it, is there any way to fix it please? thank you so much. here is the video about issue. pls check. thanks. Video here

No PR files attached.

Provide the PR files as described in the FAQ:

READ FIRST! macOS/OS X Frequent Questions

macOS/OS X Frequent Questions - FAQ Before posting your queries, several common questions have been already answered and some exist in the sticky threads in the dedicated support forum. Read this post before you start your journey with macOS/OS X and before posting your doubts and queries...

elitemacx86.com



[chop249]

I'm having problems on a Dell 7040 getting the Intel 530 to spoof from SKL to KBL Intel 630 in Ventura. I can boot just fine until I try to spoof then it just boot cycles on me till I throw in the install USB. Any idea where to start looking for issues?



[EliteMacx86]

I'm having problems on a Dell 7040 getting the Intel 530 to spoof from SKL to KBL Intel 630 in Ventura. I can boot just fine until I try to spoof then it just boot cycles on me till I throw in the install USB. Any idea where to start looking for issues?

No PR files attached.

Provide the PR files as described in the FAQ:

READ FIRST! macOS/OS X Frequent Questions

macOS/OS X Frequent Questions - FAQ Before posting your queries, several common questions have been already answered and some exist in the sticky threads in the dedicated support forum. Read this post before you start your journey with macOS/OS X and before posting your doubts and queries...

elitemacx86.com



[chop249]

So this is where I am now. I have HDMIx1 and DPx2. When booting it uses DP1 and then switches to HDMI once at the Apple logo. I then have to unplug and replug the HDMI to be able to get to view the screen. I do not have the ability to have dual monitors yet. I also had issues with clicking on the reply box etc in the forum but could click away in pages of other sites. I also do show a full 1536MB now vs the 7MB prior. Do we need the PR files at this point or is it a matter of tweaking this? I'd be happy to provide the PR files I just need to figure out how to get them. Thanks!



[EliteMacx86]

View attachment 5753
So this is where I am now. I have HDMIx1 and DPx2. When booting it uses DP1 and then switches to HDMI once at the Apple logo. I then have to unplug and replug the HDMI to be able to get to view the screen. I do not have the ability to have dual monitors yet. I also had issues with clicking on the reply box etc in the forum but could click away in pages of other sites. I also do show a full 1536MB now vs the 7MB prior. Do we need the PR files at this point or is it a matter of tweaking this? I'd be happy to provide the PR files I just need to figure out how to get them. Thanks!

It's normal. You'll need to patch the connectors.

Read here:

GUIDE - How to Enable Intel HD and UHD Graphics on macOS - Intel Framebuffer Patching Guide

How to Enable Intel HD and UHD Graphics on macOS - Intel Framebuffer Patching Guide An EliteMacx86 Exclusive Guide - This guide covers fixing Intel HD and UHD Graphics on macOS. By following this guide, you'll be able to enable Intel Graphics with acceleration on macOS with full QE/CI on your...

elitemacx86.com
