[Solved] Assistance required for battery and NVMe SSD fixes

[irfan67670]

@EliteMacx86 related to post#25, are the set of patches mentioned on below link still true for Catalina, or are they no longer useful?

GUIDE - How to use NVMe and M.2 Drives on macOS Sierra

With the introduction of NVMe and M.2 Drives, which provides more speed than a normal SSD or Hard Drive, can be used on hackintoshes without any issues. Apple has been already using their compatible NVMe drives which is not only faster but supports many features and works out of the box. For...

www.elitemacx86.com

Can you also suggest what other patches i should apply to my system dsdt, i applied all possible ones from the clover setup guide.

Thank you.



[EliteMacx86]

@EliteMacx86 related to post#25, are the set of patches mentioned on below link still true for Catalina, or are they no longer useful?

Those are for Sierra only.

Can you also suggest what other patches i should apply to my system dsdt, i applied all possible ones from the clover setup guide.

What issue are you having as of now?

What are the list of patches you applied?



[irfan67670]

What issue are you having as of now?

Currently, I need to be able to find out if I can use my Intel nvme ssd with Catalina, as i have installed it on SATA and disabled nvme to avoid panic at boot. If my nvme ssd can work (somehow), it will be great and i can reinstall on it.

What are the list of patches you applied?

Applied the following patches to my DSDT:

• Layout ID
• Rename GFX0 to IGPU
• Fix _WAK Arg0 v2
• Fix Mutex with non-zero SyncLevel
• HPET Fix
• IRQ Fix
• OS Check Fix
• RTC Fix
• SMBUS Fix
• 7-series/8-series USB
• [bat] Dell Inspiron 15-7xxx
• OS Check Fix Windows 10
• USB 3 _PRW 0x6D instant wake
• [GPIO] GPIO controller enable [SKL+]



[EliteMacx86]

Currently, I need to be able to find out if I can use my Intel nvme ssd with Catalina, as i have installed it on SATA and disabled nvme to avoid panic at boot. If my nvme ssd can work (somehow), it will be great and i can reinstall on it.

Like i mentioned, not all NVMe is supported on macOS. Provide me the exact model to check further.

7-series/8-series USB

This patch is not intended for your system. Check the notes in the guide.

USB 3 _PRW 0x6D instant wake

If your DSDT has 0x6D, then it's the correct patch. Note that there are two versions.



[irfan67670]

If your DSDT has 0x6D, then it's the correct patch. Note that there are two versions.

Yup checked DSDT first, this is the right patch.

NVMe model:

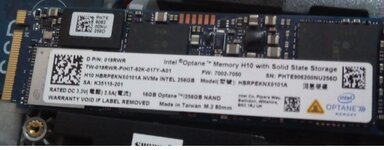

Intel (Former Teton Glacier) 16G + 256G QLC PCIE NVME SSD w/Optane Memory (attached image)
Note: When Raid mode is set in bios, the optane memory works as a cache over the nvme ssd. Since it is set to AHCI mode, they appear as two nvme ssd's separately (256G + 16G). I have formatted the optane as 16gb ntfs from windows to confirm this.

Checking the USB patch, though i don't think it should affect anything other than sleep function, because so far there are no other problems in usb ports.



[EliteMacx86]

Yup checked DSDT first, this is the right patch.

NVMe model:
Intel (Former Teton Glacier) 16G + 256G QLC PCIE NVME SSD w/Optane Memory (attached image)
Note: When Raid mode is set in bios, the optane memory works as a cache over the nvme ssd. Since it is set to AHCI mode, they appear as two nvme ssd's separately (256G + 16G). I have formatted the optane as 16gb ntfs from windows to confirm this.

Checking the USB patch, though i don't think it should affect anything other than sleep function, because so far there are no other problems in usb ports.

The Optane will NOT work i guess. So better to replace it with a new SSD.



[irfan67670]

Alright, I am happy with my sata for now, so will look for a good replacement once i decide to switch to sdd.

Thank you.



[EliteMacx86]

Alright, I am happy with my sata for now, so will look for a good replacement once i decide to switch to sdd.

Thank you.

Sure. Mark the thread solved.



[irfan67670]

Solved
