after tried many times, trackpad still not working

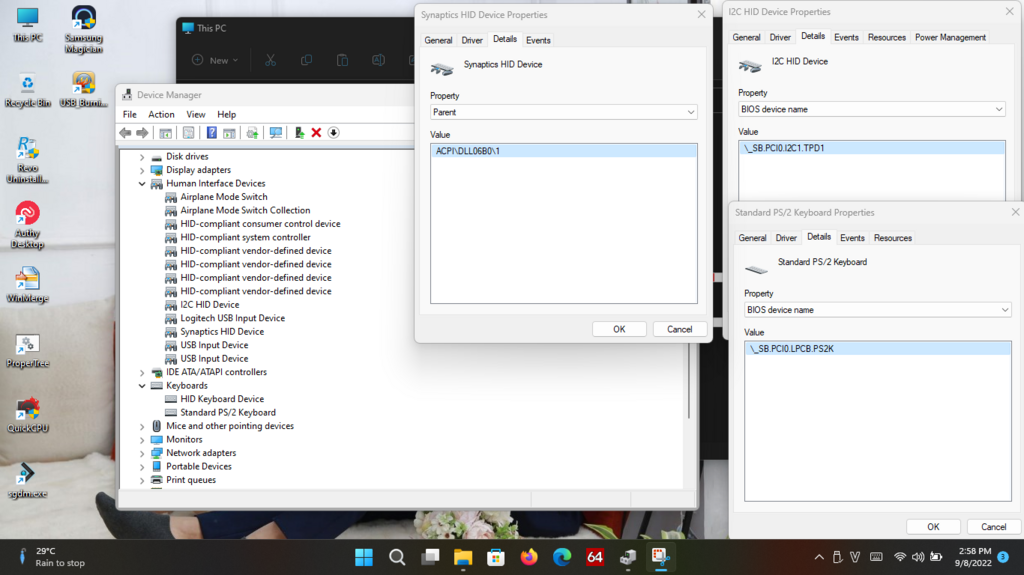

Here is my devices:
I followed voodooi2c guide carefully:
_SB.PCI0.I2C1.TPD1:
I renamed SBFI to SBFB and remove:
But can't compile, so I removed these too:
Then compiled SSDT-TPD1.aml success (below attached files), put this SSDT-TPD1.aml in OC/ACPI and add to config.plist. Reboot and nothing change

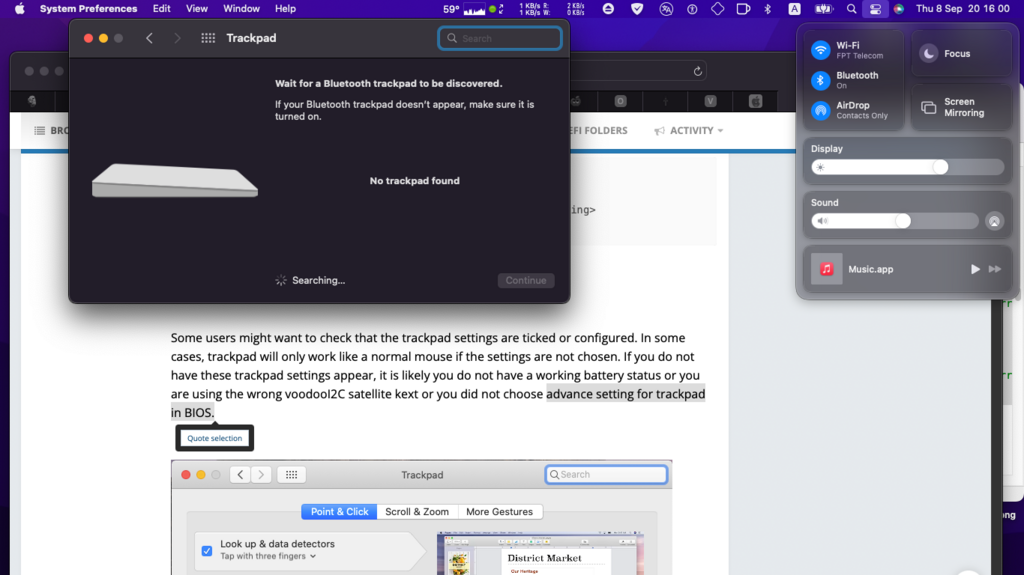

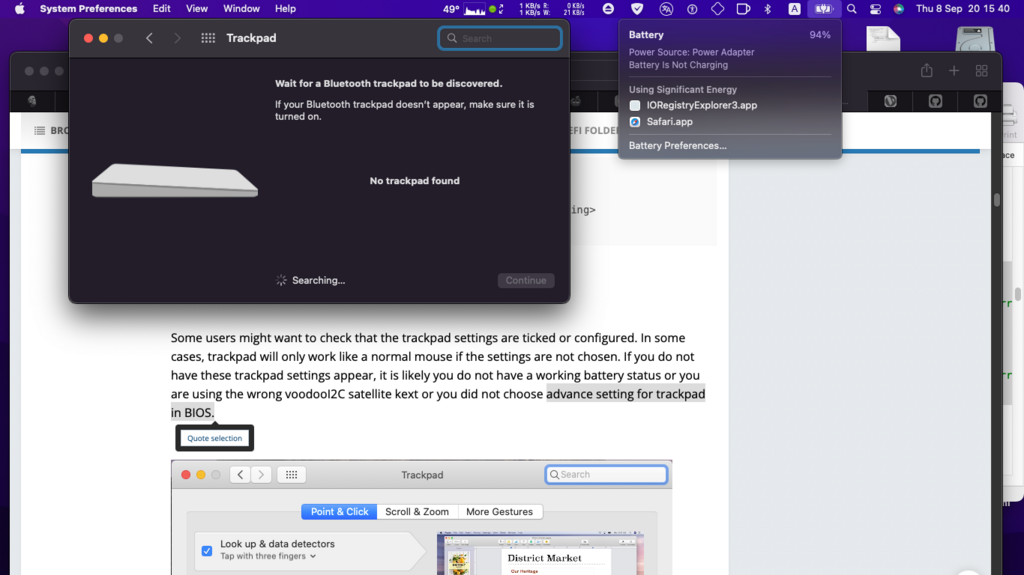

Trackpad work like mouse, no gestures but Trackpad setting not show in system preferences, and nothing advance setting for trackpad in BIOS. Battery status + brighter slide working well

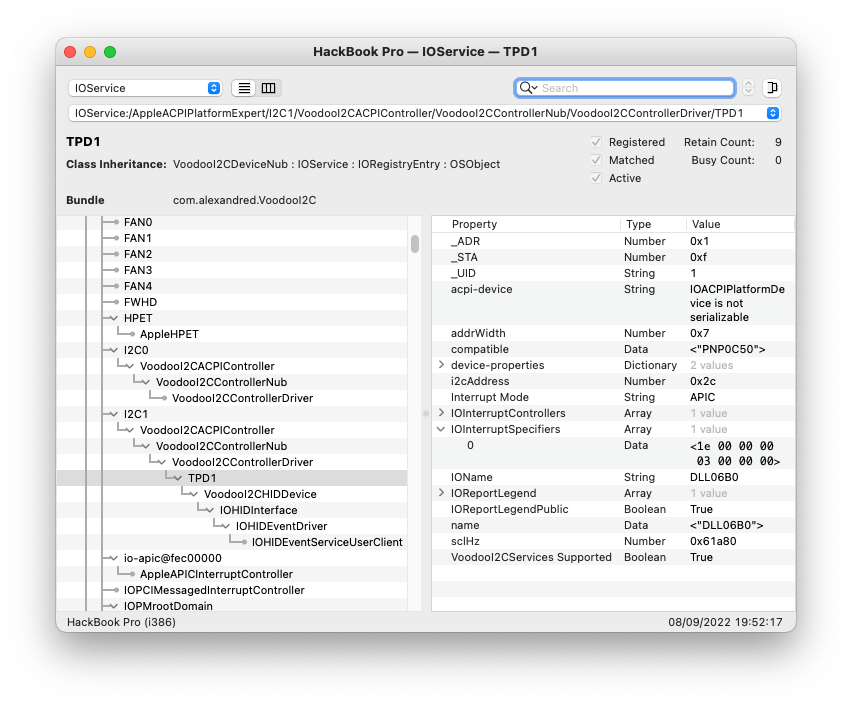

In IOReg, TPD1 show Interrupt mode is APIC, and can't see GPI0 - which I understand no need for Broadwell CPU right?
What were I missing? thank and regards!
With-SSDT-TPD1.ioreg
Here is my devices:
Code:
~$ sudo dmesg | grep -i input
[ 1.047936] input: Lid Switch as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0D:00/input/input0
[ 1.047995] input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input1
[ 1.048040] input: Sleep Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0E:00/input/input2
[ 1.048079] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input3
[ 1.104768] input: AT Translated Set 2 keyboard as /devices/platform/i8042/serio0/input/input4
[ 1.519008] input: DLL06B0:00 06CB:78F1 Mouse as /devices/pci0000:00/INT3433:00/i2c-1/i2c-DLL06B0:00/0018:06CB:78F1.0001/input/input7
[ 1.519138] hid-generic 0018:06CB:78F1.0001: input,hidraw0: I2C HID v1.00 Mouse [DLL06B0:00 06CB:78F1] on i2c-DLL06B0:00
[ 2.820686] input: Synaptics TM3096-001 as /devices/pci0000:00/INT3433:00/i2c-1/i2c-DLL06B0:00/0018:06CB:78F1.0001/input/input9
[ 2.820777] hid-rmi 0018:06CB:78F1.0001: input,hidraw0: I2C HID v1.00 Mouse [DLL06B0:00 06CB:78F1] on i2c-DLL06B0:00
[ 3.004622] input: Logitech USB Receiver as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.0/0003:046D:C52B.0002/input/input10
[ 3.058075] input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/LNXVIDEO:00/input/input11
[ 3.062976] hid-generic 0003:046D:C52B.0002: input,hidraw1: USB HID v1.11 Keyboard [Logitech USB Receiver] on usb-0000:00:14.0-3/input0
[ 3.063079] input: Video Bus as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0A08:00/device:1e/LNXVIDEO:01/input/input12
[ 3.065008] input: Logitech USB Receiver Mouse as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.1/0003:046D:C52B.0003/input/input13
[ 3.065153] input: Logitech USB Receiver Consumer Control as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.1/0003:046D:C52B.0003/input/input14
[ 3.122967] input: Logitech USB Receiver System Control as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.1/0003:046D:C52B.0003/input/input15
[ 3.123094] hid-generic 0003:046D:C52B.0003: input,hiddev0,hidraw2: USB HID v1.11 Mouse [Logitech USB Receiver] on usb-0000:00:14.0-3/input1
[ 3.124604] hid-generic 0003:046D:C52B.0004: hiddev1,hidraw3: USB HID v1.11 Device [Logitech USB Receiver] on usb-0000:00:14.0-3/input2
[ 3.332372] logitech-djreceiver 0003:046D:C52B.0004: hiddev0,hidraw1: USB HID v1.11 Device [Logitech USB Receiver] on usb-0000:00:14.0-3/input2
[ 3.455678] input: Logitech Wireless Device PID:4069 Keyboard as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.2/0003:046D:C52B.0004/0003:046D:4069.0005/input/input17
[ 3.455972] input: Logitech Wireless Device PID:4069 Mouse as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.2/0003:046D:C52B.0004/0003:046D:4069.0005/input/input18
[ 3.456383] hid-generic 0003:046D:4069.0005: input,hidraw2: USB HID v1.11 Keyboard [Logitech Wireless Device PID:4069] on usb-0000:00:14.0-3/input2:1
[ 3.576161] input: Logitech MX Master 2S as /devices/pci0000:00/0000:00:14.0/usb2/2-3/2-3:1.2/0003:046D:C52B.0004/0003:046D:4069.0005/input/input22
[ 3.576301] logitech-hidpp-device 0003:046D:4069.0005: input,hidraw2: USB HID v1.11 Keyboard [Logitech MX Master 2S] on usb-0000:00:14.0-3/input2:1
[ 6.353578] input: DELL Wireless hotkeys as /devices/virtual/input/input23
[ 6.867359] input: Integrated_Webcam_HD: Integrate as /devices/pci0000:00/0000:00:14.0/usb2/2-5/2-5:1.0/input/input24
[ 6.911204] input: Dell WMI hotkeys as /devices/platform/PNP0C14:01/wmi_bus/wmi_bus-PNP0C14:01/9DBB5994-A997-11DA-B012-B622A1EF5492/input/input25
[ 7.306338] input: HDA Intel HDMI HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:03.0/sound/card0/input26
[ 7.306428] input: HDA Intel HDMI HDMI/DP,pcm=7 as /devices/pci0000:00/0000:00:03.0/sound/card0/input27
[ 7.306506] input: HDA Intel HDMI HDMI/DP,pcm=8 as /devices/pci0000:00/0000:00:03.0/sound/card0/input28
[ 7.306580] input: HDA Intel HDMI HDMI/DP,pcm=9 as /devices/pci0000:00/0000:00:03.0/sound/card0/input29
[ 7.306660] input: HDA Intel HDMI HDMI/DP,pcm=10 as /devices/pci0000:00/0000:00:03.0/sound/card0/input30
[ 7.363204] snd_hda_codec_realtek hdaudioC1D0: inputs:
[ 7.440736] input: HDA Intel PCH Headphone Mic as /devices/pci0000:00/0000:00:1b.0/sound/card1/input31
[ 14.133895] rfkill: input handler disabled
[ 20.845540] rfkill: input handler enabled
[ 26.242864] rfkill: input handler disabled- correct my ACPI ID is TPD1, and know my CPU is Broadwell no need GPI0 controller patch, and I2C Controller Patches?
- Windows Emulation patch will done with SSDT-XOSI.aml
- Look at IOInterruptSpecifiers to know the hexadecimal APIC pin number is 0x1e mean 30 in decimal, less than 47, then can proceed to install kexts.
_SB.PCI0.I2C1.TPD1:
Code:
Device (TPD1)
{
Name (_ADR, One) // _ADR: Address
Method (_HID, 0, NotSerialized) // _HID: Hardware ID
{
If (LEqual (RDGI (0x35), One))
{
Return (0xB0068C11)
}
Else
{
Return (0xAF068C11)
}
}
Name (_CID, "PNP0C50") // _CID: Compatible ID
Name (_UID, One) // _UID: Unique ID
Name (_S0W, 0x04) // _S0W: S0 Device Wake State
Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method
{
If (LEqual (Arg0, ToUUID ("3cdff6f7-4267-4555-ad05-b30a3d8938de") /* HID I2C Device */))
{
If (LEqual (Arg2, Zero))
{
If (LEqual (Arg1, One))
{
Return (Buffer (One)
{
0x03
})
}
Else
{
Return (Buffer (One)
{
0x00
})
}
}
If (LEqual (Arg2, One))
{
Return (0x20)
}
}
Else
{
Return (Buffer (One)
{
0x00
})
}
Return (Zero)
}
Method (_STA, 0, NotSerialized) // _STA: Status
{
If (LEqual (And (SDS1, 0x08), 0x08))
{
Return (0x0F)
}
Else
{
Return (Zero)
}
}
Method (_CRS, 0, Serialized) // _CRS: Current Resource Settings
{
Name (SBFI, ResourceTemplate ()
{
I2cSerialBusV2 (0x002C, ControllerInitiated, 0x00061A80,
AddressingMode7Bit, "\\_SB.PCI0.I2C1",
0x00, ResourceConsumer, , Exclusive,
)
Interrupt (ResourceConsumer, Level, ActiveLow, Exclusive, ,, _Y2A)
{
0x0000001E,
}
})
If (LEqual (GR13, One))
{
CreateDwordField (SBFI, \_SB.PCI0.I2C1.TPD1._CRS._Y2A._INT, VAL3) // _INT: Interrupts
Store (0x1B, VAL3)
}
If (LOr (LOr (LEqual (BID, 0x80), LEqual (BID, 0x82)), LEqual (BID, 0x83)))
{
CreateDwordField (SBFI, \_SB.PCI0.I2C1.TPD1._CRS._Y2A._INT, VAL4) // _INT: Interrupts
Store (0x1A, VAL4)
}
Return (SBFI)
}
}
Code:
Interrupt (ResourceConsumer, Level, ActiveLow, Exclusive, ,, _Y2A)
{
0x0000001E,
}But can't compile, so I removed these too:
Code:
})
If (LEqual (GR13, One))
{
CreateDwordField (SBFI, \_SB.PCI0.I2C1.TPD1._CRS._Y2A._INT, VAL3) // _INT: Interrupts
Store (0x1B, VAL3)
}
If (LOr (LOr (LEqual (BID, 0x80), LEqual (BID, 0x82)), LEqual (BID, 0x83)))
{
CreateDwordField (SBFI, \_SB.PCI0.I2C1.TPD1._CRS._Y2A._INT, VAL4) // _INT: Interrupts
Store (0x1A, VAL4)
}Then compiled SSDT-TPD1.aml success (below attached files), put this SSDT-TPD1.aml in OC/ACPI and add to config.plist. Reboot and nothing change
Trackpad work like mouse, no gestures but Trackpad setting not show in system preferences, and nothing advance setting for trackpad in BIOS. Battery status + brighter slide working well
In IOReg, TPD1 show Interrupt mode is APIC, and can't see GPI0 - which I understand no need for Broadwell CPU right?
What were I missing? thank and regards!
With-SSDT-TPD1.ioreg
Without-SSDT-TPD1.ioreg
Last edited:
